The advancement of technology makes complex things simpler, but at the same time the price will be more expensive. However, YUBEEN-ST35L can bring users a smarter operating system and a more suitable price, making hunting clearer and smarter.
AI ballistics + ballistic calculation

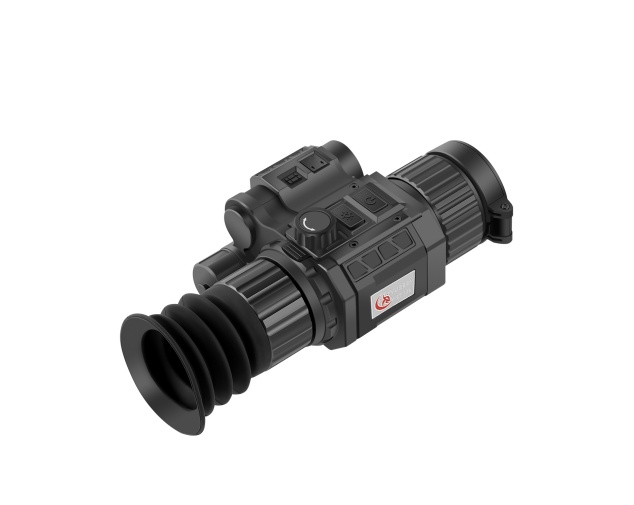

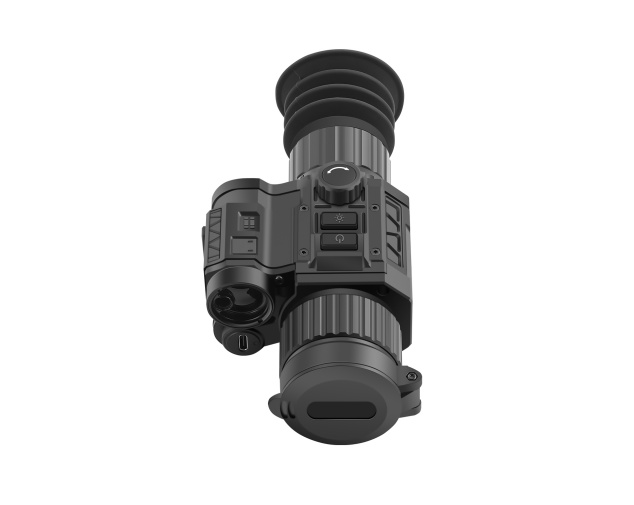

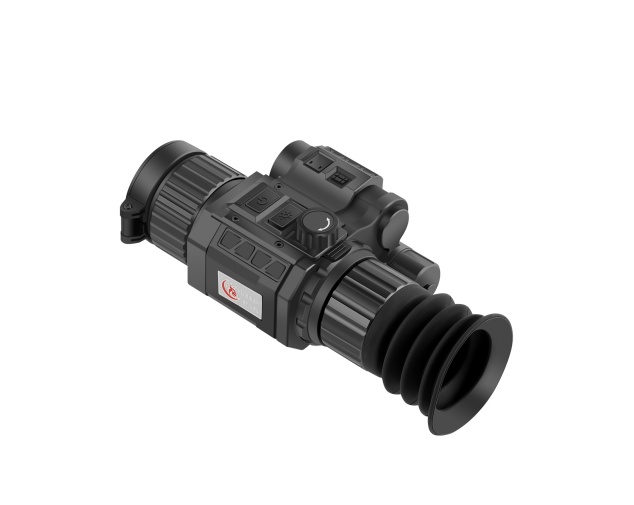

YUBEEN’s new thermal imaging rifle scope ST35L has a smarter operating system, two ballistic modes, a compact design and clearer image processing technology.
35mm Germanium lens (non-sulfur) with electronic rangefinder, accurate distance measurement allows hunters to measure and use our AI ballistics or ballistic calculations for accurate hunting. Equipped with pitch angle and horizontal inclination to correct shooting angle.
Download the YUBEEN APP to connect your phone and tablet via Wi-Fi. It also supports video recording to record and save wonderful moments.
At the same time, the protection level reaches IP67, which can easily cope with even the harsher environment.
ST35L uses 12μm Pixel Interval and more advanced image algorithms to make pictures clearer
Equipped with a built-in 32G memory card, save the wonderful moments when hunting and record every wonderful moment of the hunting trip.
LRF accurate distance measurement
The laser is aimed at the target for single distance measurement, with an accuracy range of ± (maximum detection range 1000 meters, minimum detection range 5 meters) wavelength 905
AI ballistics + ballistic calculation
Turn on AI ballistics and save the set zeroing table (choose ballistic calculation). Click on the distance measurement and the bullet landing point will be automatically displayed.
Visual light enhancement algorithm
The ST35L adds a new image enhancement algorithm technology to optimize image quality and reduce background noise, thereby obtaining clear images and giving users a better hunting experience.
Parallel gyroscope
The gyroscope can be used to adjust the position according to the target position or the trajectory deviation of the target when it moves. Let you immerse yourself in unparalleled shooting accuracy and easily and accurately capture distant targets, allowing everyone to shoot accurately
Six reticles, five color options
Choose any combination of 6 reticle styles and 5 colors to create a personalized look that works best for you
Specification
|
Image Sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
384 × 288 |
|
Frame Rate |
50 Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8~14μm |
|
NETD |
less than 35 mK (25 °C, F#=1.0) |
|
Lens (Focal Length) |
35mm |
|
Detection Range |
1800m |
|
Field of View |
7.53° x 5.65° |
|
Min. Focusing Distance |
2m |
|
Aperture |
F1.0 |
|
Magnification |
3.03x |
|
Image display |
|
|
Display |
1024×768, 0.39 inch, OLED |
|
Image Mode |
Black hot, white hot, red hot, fusion |
|
Exit Pupil |
6mm |
|
Eye Relief |
45mm |
|
Diopter (Range) |
-5 D to 3 D |
|
system |
|
|
Digital Zoom |
1x, 2x, 4x, 8x |
|
Capture Snapshot |
Yes |
|
Record Video |
On-board video recording |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (32 GB) |
|
PIP |
Yes |
|
DPC |
Yes |
|
Hotspot |
Yes |
|
Uniformity Correction |
Yes |
|
Hot Track |
Yes |
|
Reticle |
Yes |
|
Recoil-activation Recording |
Yes |
|
Max. Recoil |
1000g/0.4ms |
|
Zeroing Profiles |
5 |
|
Ballistic Calculation |
Remark ballistic ballistic calculation |
|
Power Supply |
|
|
Battery Type |
replaceable 18500 |
|
Battery Operating Time |
≥4.5h (25 °C, with hotspot off) |
|
Battery Capacity Display |
Yes |
|
Anti-reverse Battery Connection |
Yes |
|
Overvoltage Protection |
Yes |
|
type-c Power Supply |
5V DC, 2 A Supports External Power Supply |
|
General |
|
|
Work Temperature/Humidity |
-30 °C to 55 °C (-22 °F to 131°F) |
|
Protection Level |
IP67 |
|
Dimension |
170 * 80 * 51 mm |
|
Weight |
507g（without battery） |
|
Port |
Type-C |
