Y65L has a breakthrough resolution of 1280 infrared thermal imaging and a built-in 1000-meter LRF design to ensure high-definition images. The 60mm large lens provides a wider field of view and an ultra-long 3100-meter detection distance, while providing more pixels and a larger range, improving image resolution and target resolution, and bringing hunting to a whole new level through technological innovation.

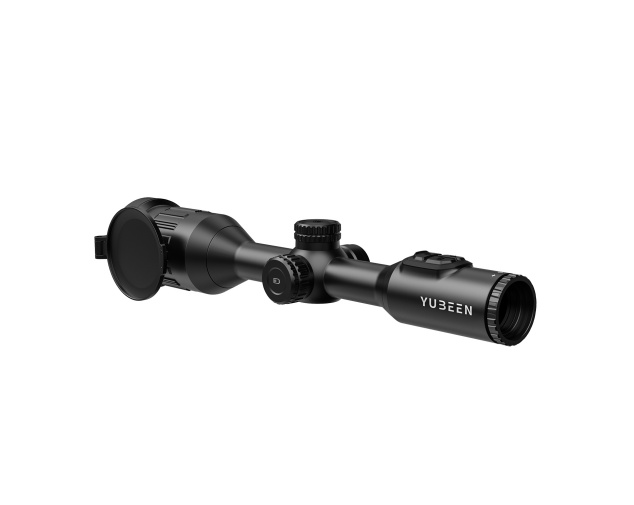

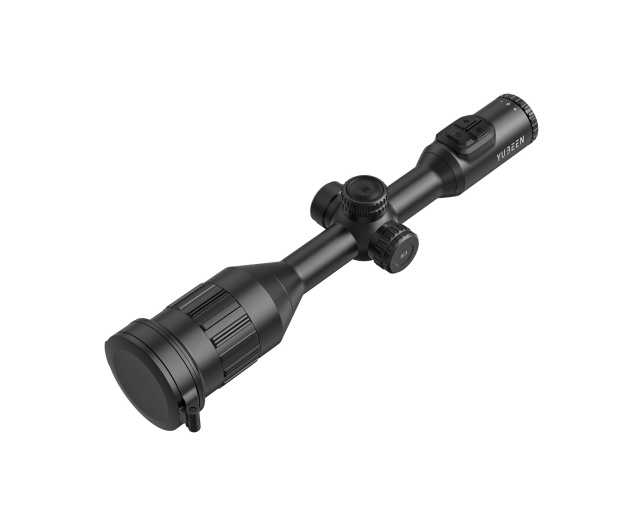

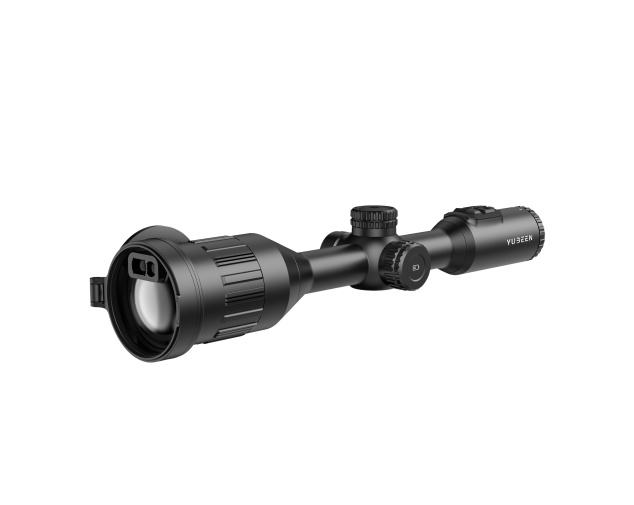

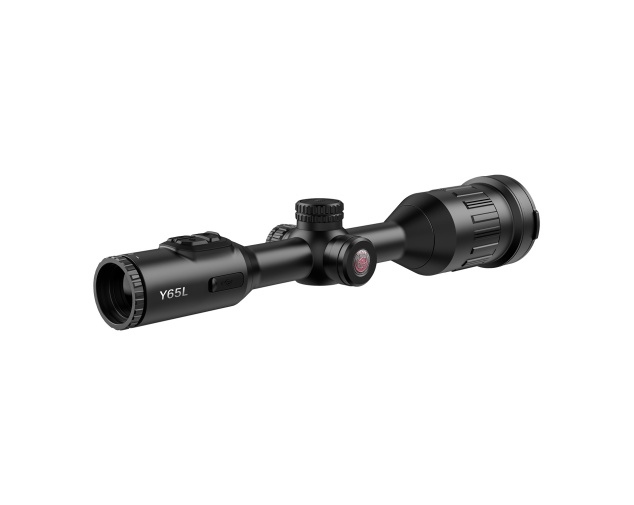

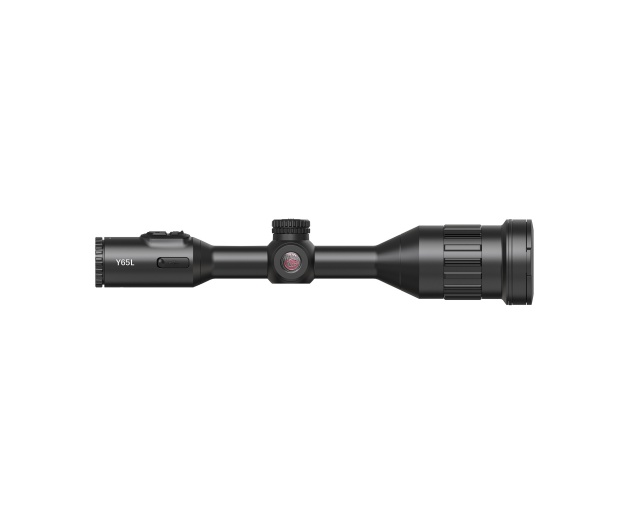

Thermal Imaging Rifle Scope Y65LRF
Equipped with an ultra-sensitive movement with NETD < 15mk and the latest image upgrade algorithm (Super Image 2.0)
Sensor enhancement
The 1280×1024 CMOS sensor offers more pixels and a larger array for enhanced image clarity and target capture, taking hunting to the next level through technological innovation.
Another important technical specification is NETD, which is one of the most important technical specifications for any thermal equipment.
Extremely sensitive CMOS sensor
CMOS image sensor provides detailed, high-resolution images in the lowest light conditions Y65L offers 1280×1024 sensor to best suit individual needs
High impact resistance
Aluminum alloy housing and sturdy components make the YUBEEN Y65L thermal imaging sight shock-resistant up to 1000g/0.4ms.
Suitable for .375h&H, 12 gauge and 9.3×64 magnum
Round display
Yubeen Y65L uses a truly circular display window, which is consistent with the structure of the human eye except for the line in the center of the full screen.
It also closely recreates the look and feel of traditional scopes that hunters have become accustomed to, complete with a large 2860 x 2560 1.03-inch OLED screen.
Y65L helps you achieve your goals faster and better
High sensitivity 15mk ——–Latest image upgrade algorithm (Super Image 2.0)
YubeenY65L breaks through for the first time, NETD is less than 15mk
The device’s ability to sense temperature differences is a huge leap forward, and the more sensitive the device, the better it can sense its surroundings, resulting in clearer images and the finest details.
This allows thermal imaging technology to increasingly assist hunters in every hunting decision.
AI ballistic calculation
The laser rangefinder is combined with an onboard ballistic calculator to accurately account for bullet weight, temperature and altitude, calculating real-time solutions and fire calibration based on distance to target
First shot: Calculating the impact point
Second shot: Automatic calculation of impact point
1000m LRF accurate ranging

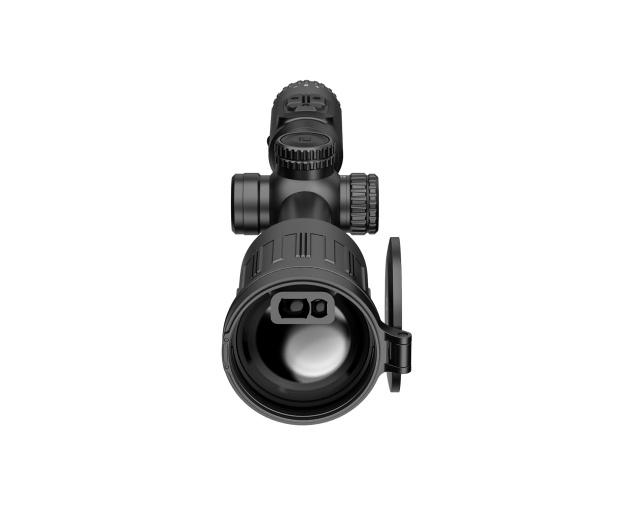

The YubeenY65L thermal imaging objective lens has an innovative built-in laser rangefinder, which not only maintains the traditional sight shape, but also ensures that hunters can find the maximum distance of 1000 meters with an accuracy of ±1 meter.
Specification
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
1280×1024 |
|
Frame Rate |
25Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 15 mK (@25°C),F#=1.0 |
|
Lens (Focal Length) |
60mm, F1.0
|
|
Detection Range |
3100m |
|
Focus Mode |
Focus Ring |
|
Field of View(H × V), Degrees / m @100m |
14.6°×11.7°/25.6m×20.5m |
|
Min. Focusing Distance |
6m |
|
Magnification |
2.5×-28.5× Support 1× step value of continuous zooming |
|
Image Display
|
|
|
Display |
2560×2560, 1.03 inch OLED |
|
Contrast Adjustment |
Yes |
|
Brightness Adjustment |
Yes |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
|
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Exit Pupil |
6mm
|
|
Eye Relief |
45mm |
|
Diopter (Range) |
-4D to 4D |
|
Tone Adjustment |
Cold, Warm
|
|
General
|
|
|
Protection Level |
IP67
|
|
Weight |
1000g without external battery
|
|
Dimension |
452.6mm x 94.3mm x78.9mm |
|
Mounting |
Standard 30mm |
|
Working Temperature |
-30 °C to 55 °C (-22 °F to 131°F)
|
|
Center Height |
41mm |
|
System |
|
|
Record Video |
On-board Video Recording |
|
Capture Snapshot |
Yes |
|
Hotspot |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hot Track |
Yes |
|
Distance Measurement |
Yes |
|
Audio Recording |
Yes |
|
Recoil-activation Recording |
Yes |
|
Freeze Zeroing |
Yes |
|
Max. Recoil |
1000g/0.4ms |
|
Local Album |
Yes |
|
Zeroing Profiles |
5 |
|
Ballistic Calculation |
Three types |
|
Power Supply |
|
|
Battery Type |
Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
|
|
Battery Operating Time |
9 hours continuous running (@25°C, LRF on) |
|
Type-C Power Supply |
5 V DC/2 A, USB Type-C interface, Supports QC3.0 |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905 nm |
|
Max. Measuring Range |
1000 m |
|
Measurement Accuracy |
±1 m |
|
Min. Measuring Range |
10 m |
|
LRF Module in Lens |
Yes |
